Coffee Mug Bluetooth Music Player
SIP THE TUNE
Welcome to a step-by-step guide to building a coffee mug Bluetooth music player with a creative twist. In this blog post, I’ll show you how to craft a coffee mug Bluetooth music player. Get ready to elevate your coffee experience with a symphony of sound.

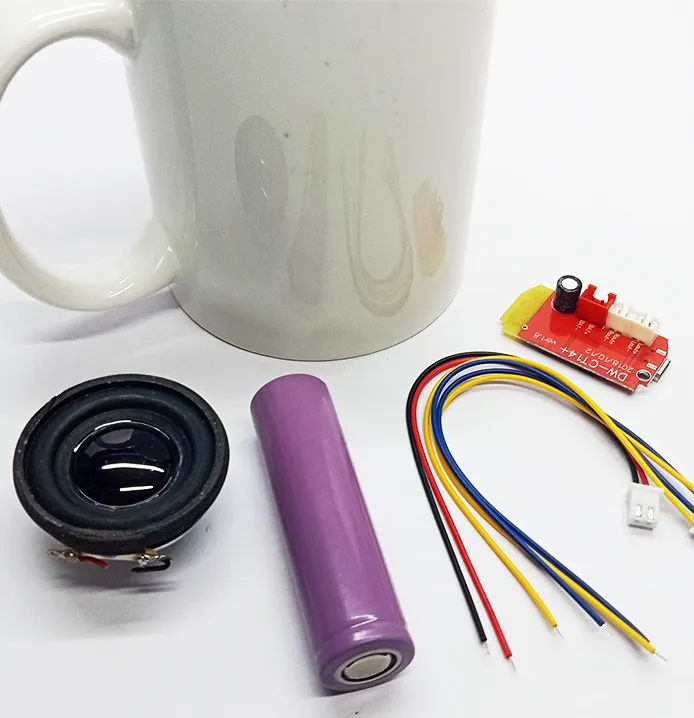

Essential Components
Gathering the components for this project is easy and affordable. With a budget of under Rs 300, you can find everything you need both online and at local stores. Additionally, have scissors, a cutter, glue, and a soldering rig on hand for the assembly process.
Coffee Mug: 300ml
Bluetooth Module: CT14 Bluetooth 4.2 F Class 5W+5W
Battery: 3.7V, 1200mA
Speaker: 1.5 inches, 2W
Acrylic Sheet: 3mm Black
Creating the Top Panel

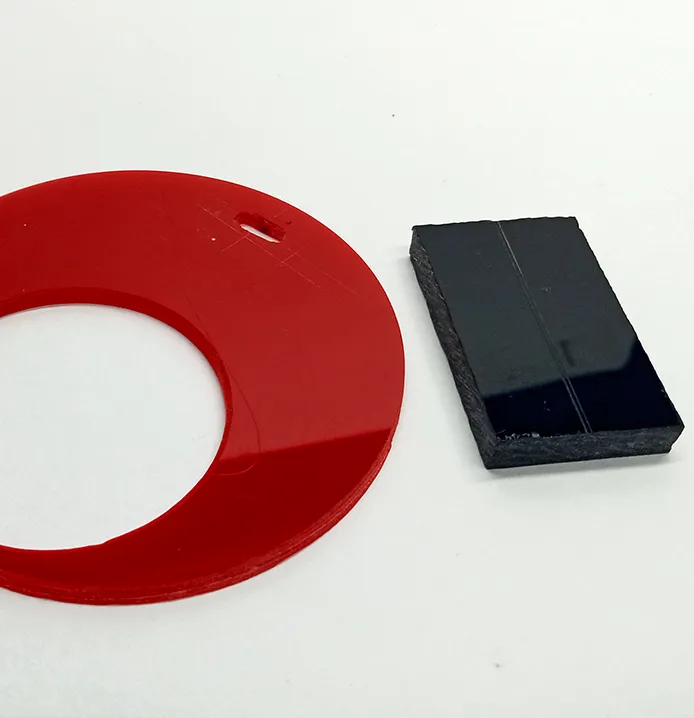

To start, I created a top panel by cutting a 7.5 cm circular acrylic piece, 3 mm thick, using a hole saw drill. Next, I drilled a hole in the acrylic to mount a 1.5-inch speaker. Additionally, I cut a rectangular piece of acrylic, 5 mm thick, to mount the Bluetooth module and battery.

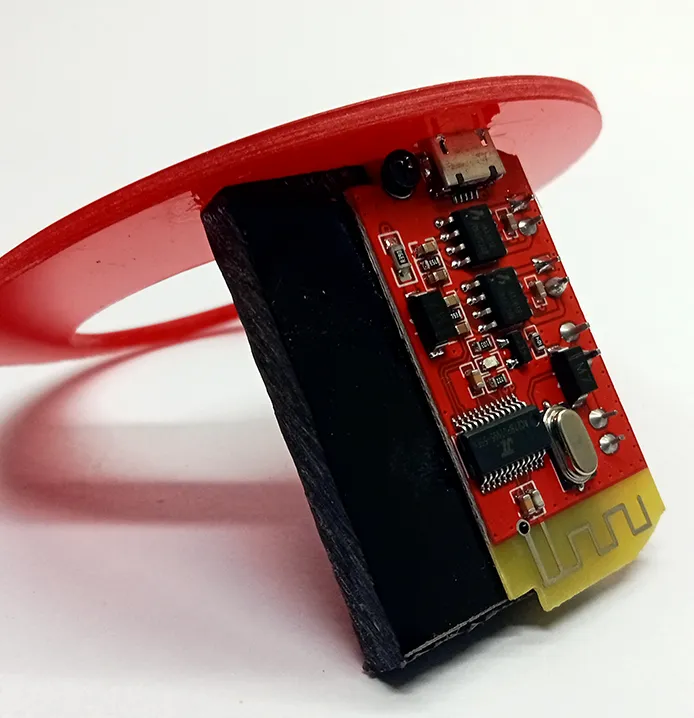

A slot is created in the top panel for micro USB and the module is positioned and secured with screws on the rectangular acrylic.

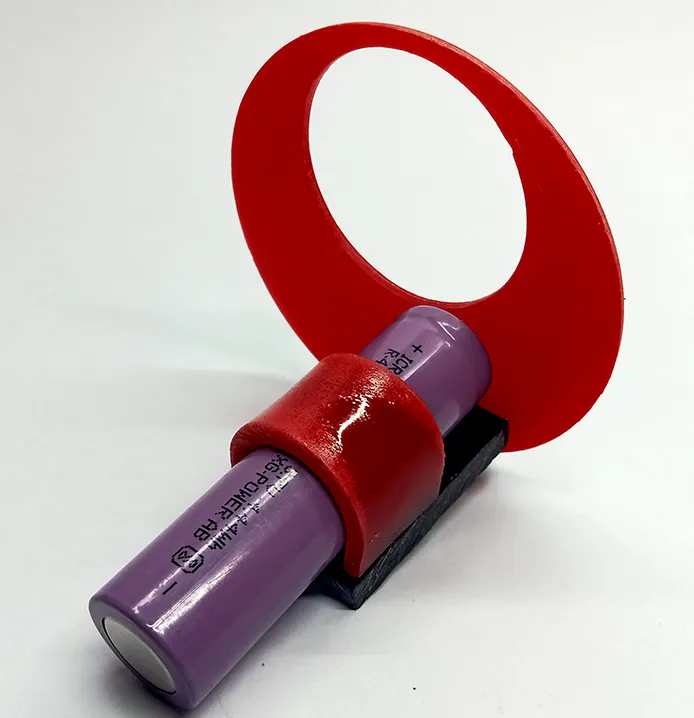

Next, I took a small piece of acrylic, bent it into a semi-arc shape, and securely affixed it to the rectangular acrylic piece to mount the battery.

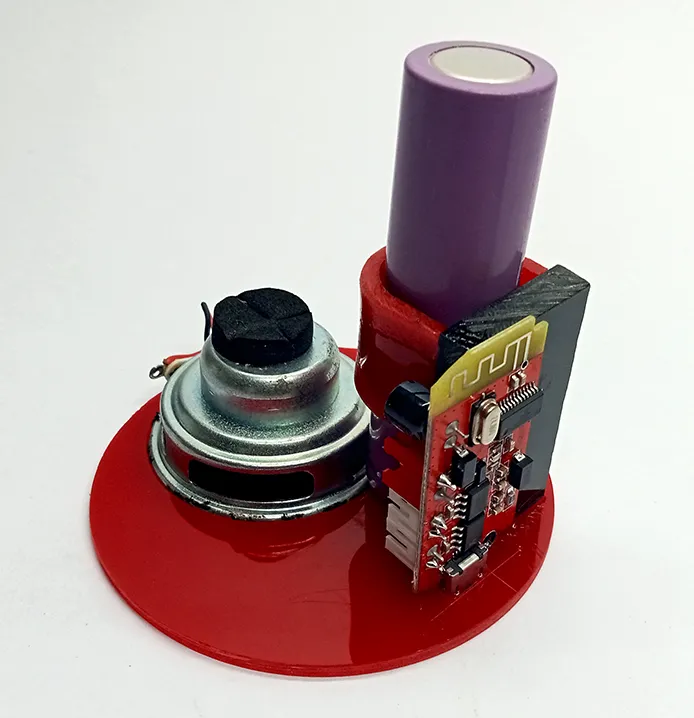

Mounted all the essential parts on the top panel.

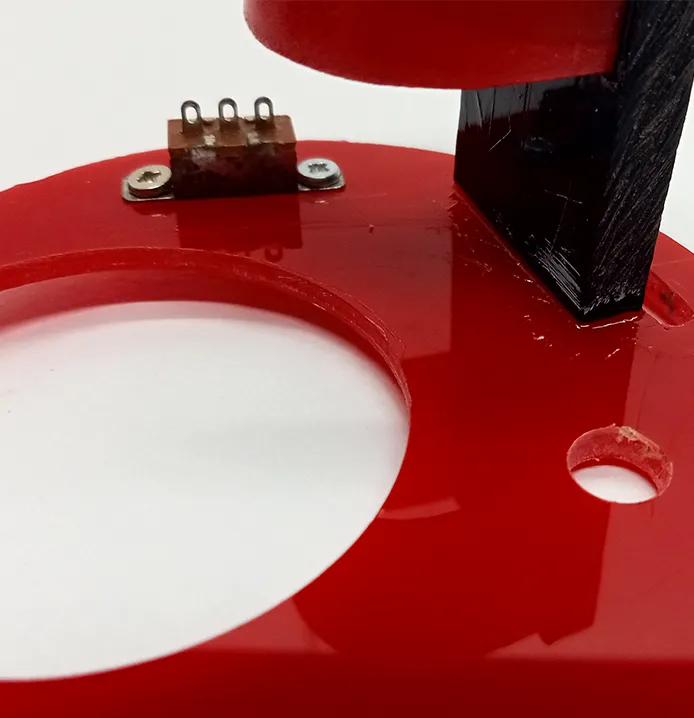

After that I installed a switch on the panel and created an opening for the micro-speaker. The module produces a stereo output of 5+5 watts. Considering the limited space available on the top panel, I decided to utilize a 1.5 inch and a micro-speaker for stereo output.

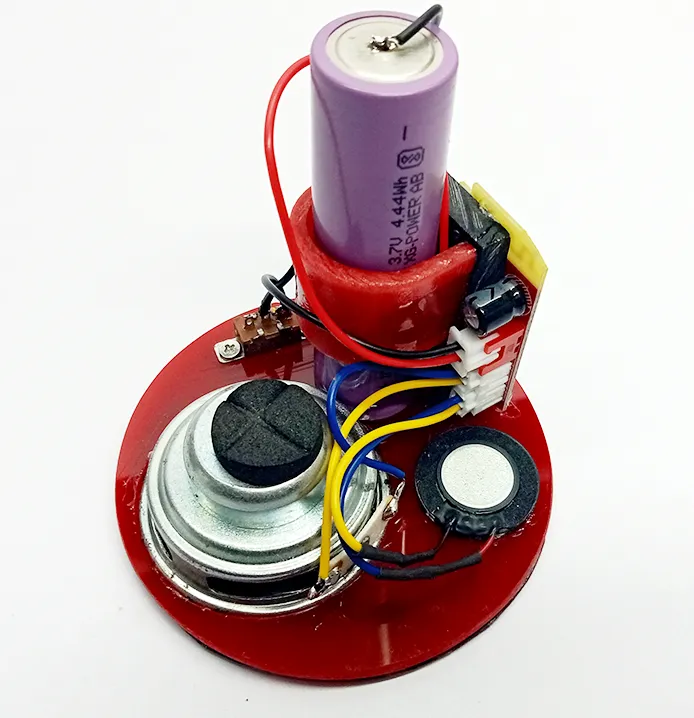

Completing the installation of all components and wiring connections.
Finishing

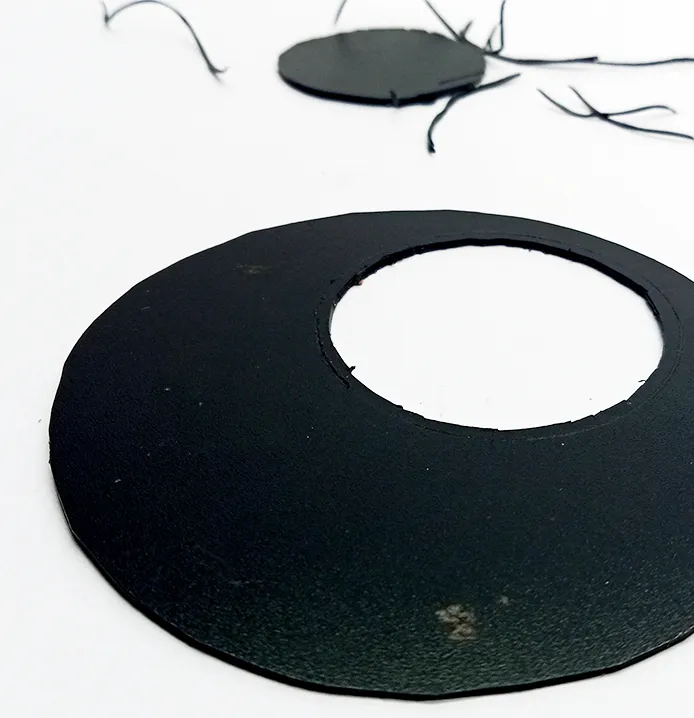

I crafted a cover using plastic folder material to stick it to the acrylic top panel. This process can be skipped by selecting a black-colored acrylic top panel. Additionally.

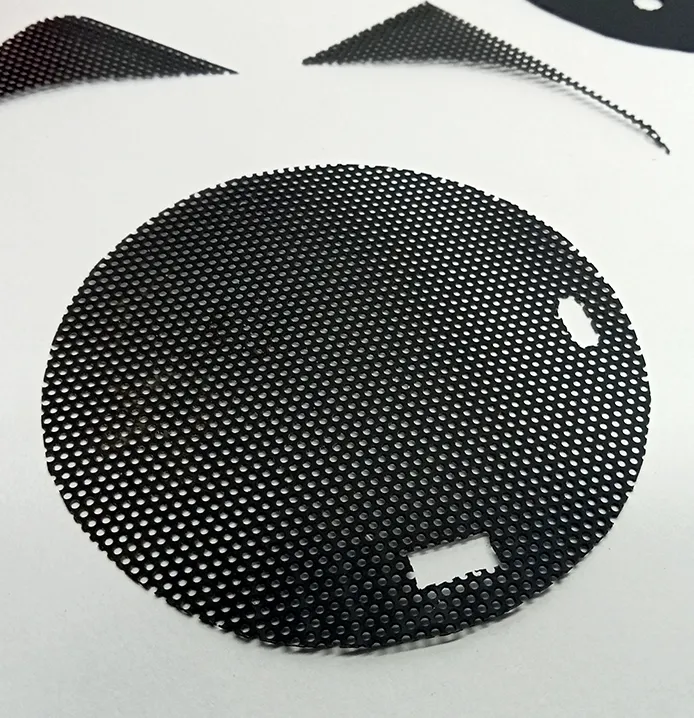

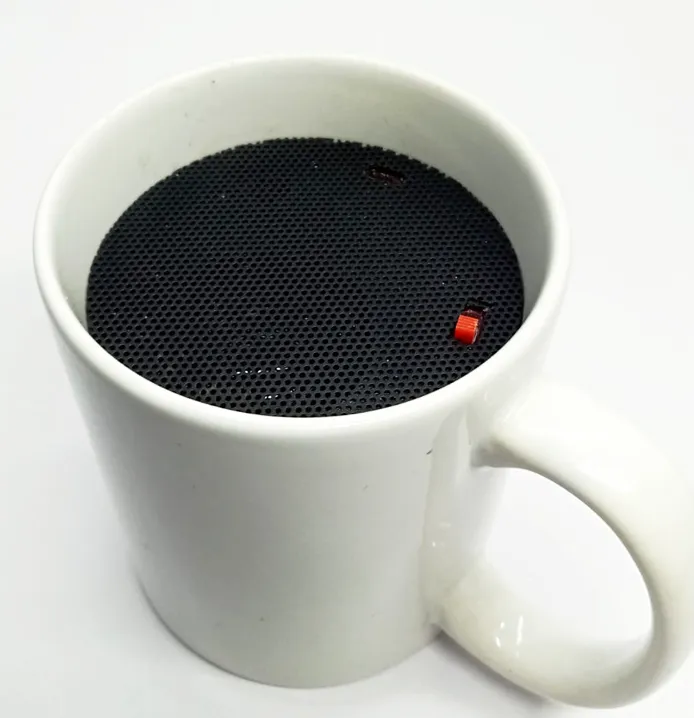

Finally, I placed a plastic speaker mesh on top of the panel, ensuring provision for charging and the switch.

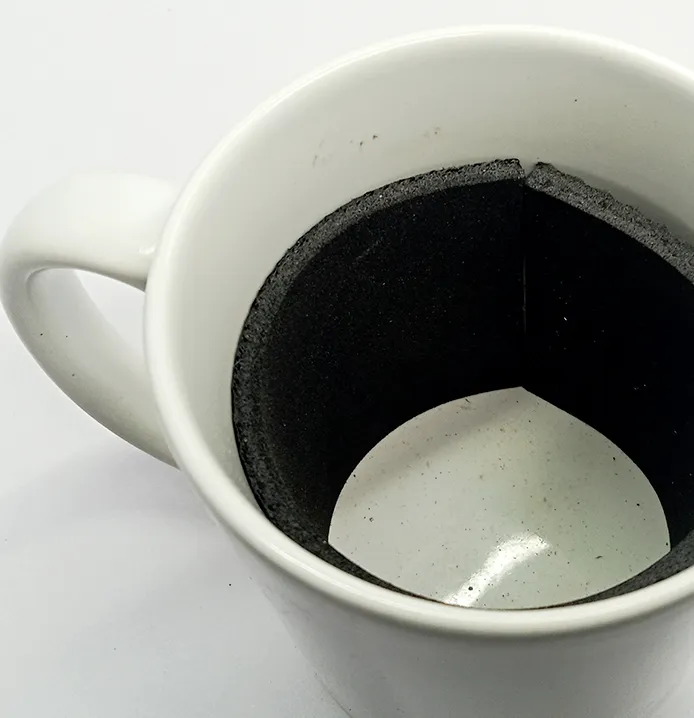

Before mounting the panel with components inside the cup, I attached craft foam to enhance the sound quality.

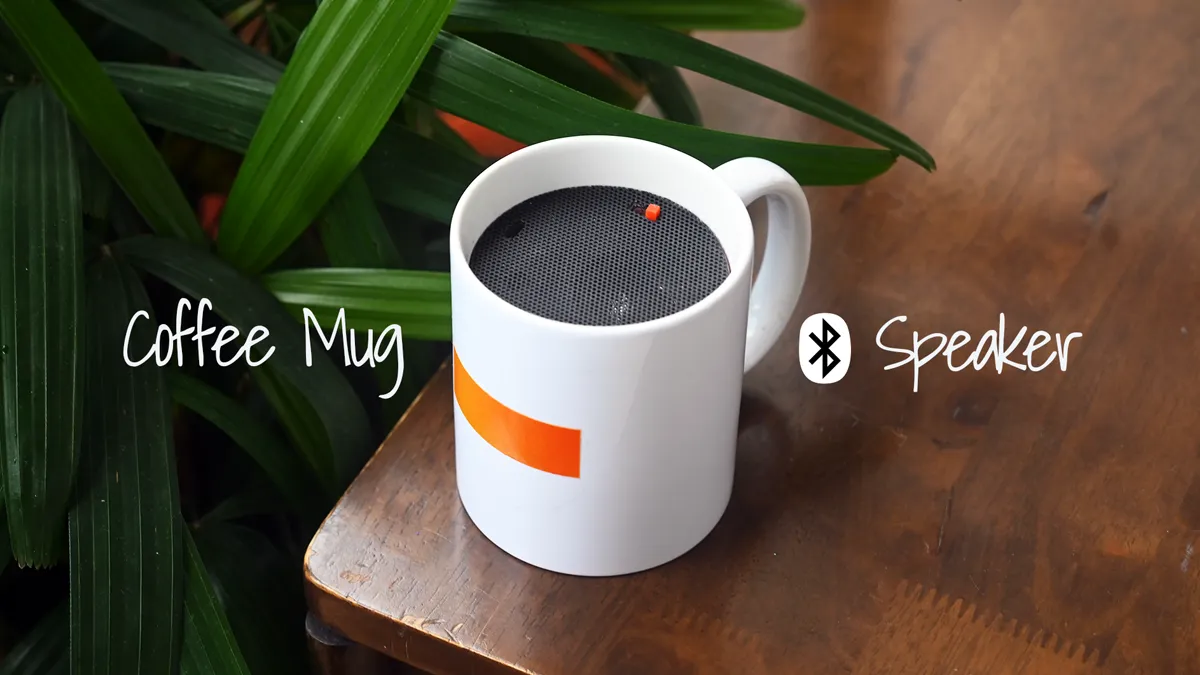

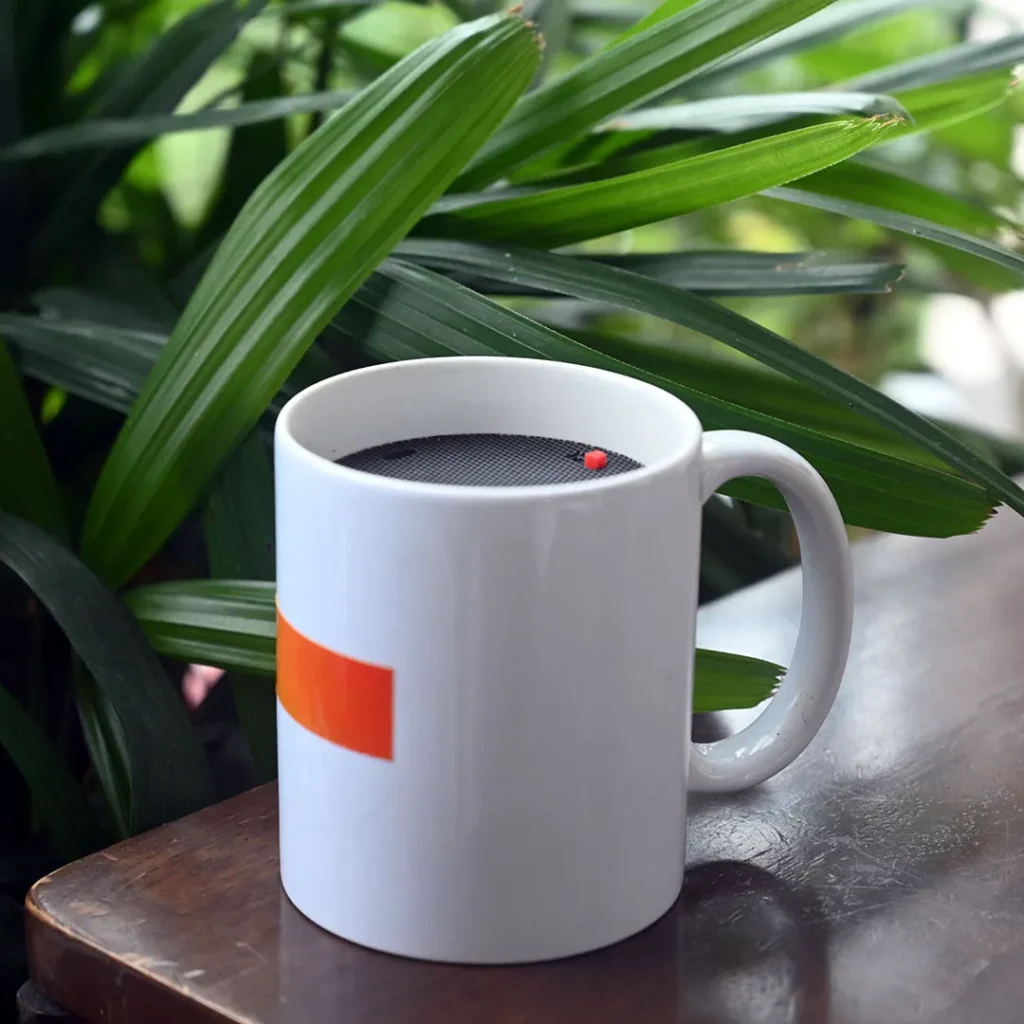

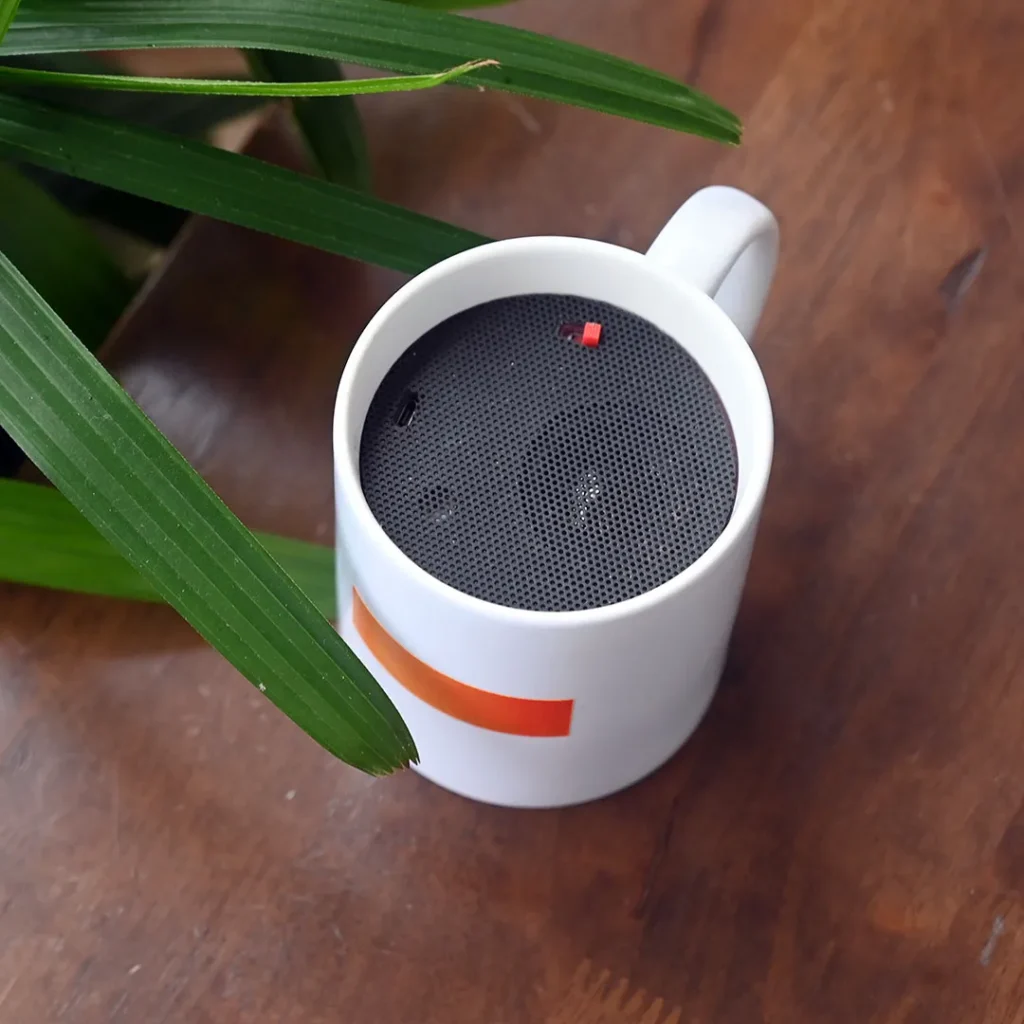

This is what the final product looks like.
Build Time, Cost, and a Few Mistakes
Start to finish, this build took about a day. Between the acrylic panels, the module, the speaker, and the battery, the whole thing came together for well under Rs 500. Not every cut went smoothly, though — a few acrylic pieces got chipped or snapped while I was shaping them, so I’d recommend cutting a spare panel or two before you start. The trickiest part by far was getting the housing to sit properly inside the mug: the panel has to clear the curve of the ceramic while still holding the speaker, battery, and module snugly in place, so expect a few rounds of trial fitting before it seats right.
All that said, I’m happy with how it turned out — it sounds good, and sipping coffee to music out of a speaker you built into the mug yourself never gets old.
